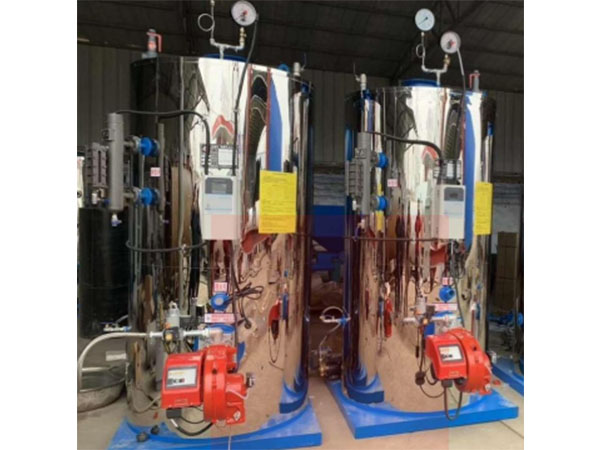

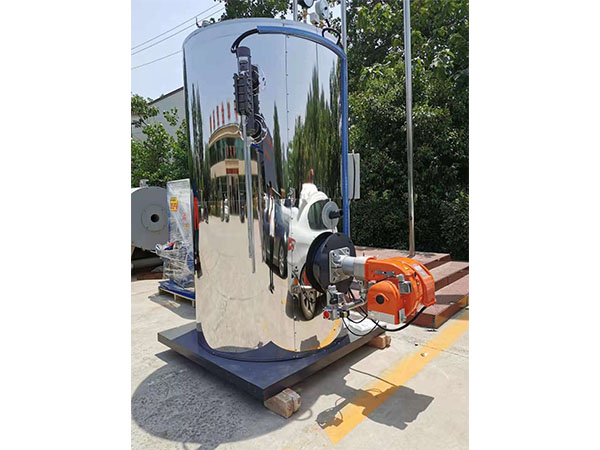

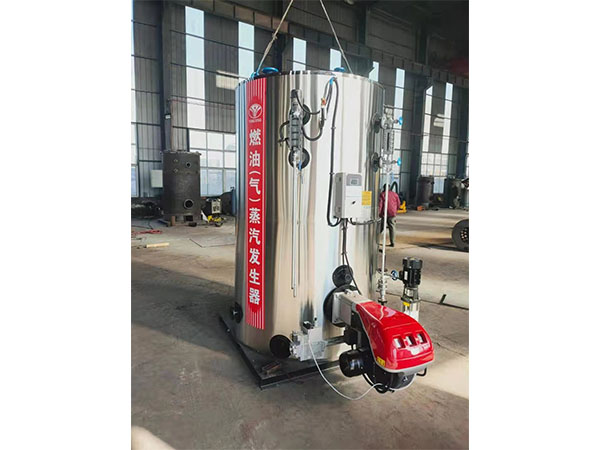

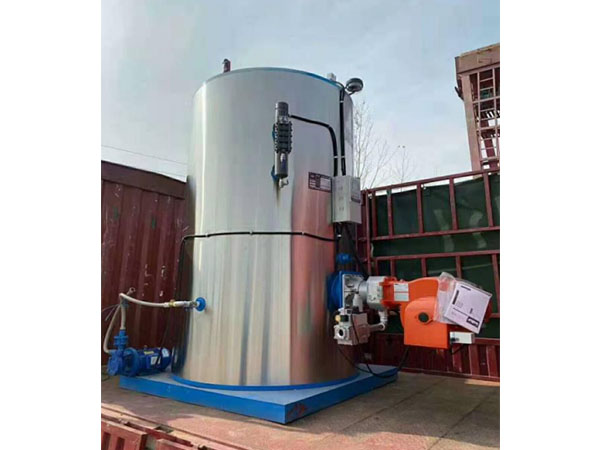

Tubeless boiler, Vertical boiler

Tubeless boiler, Vertical boiler

Product Description1.Model:Lhs2.Capacity:300kg/h,500kg/h,1000kg/h3.Design pressure:0.4Mpa(4bar),0.7Mpa(7bar),1.0Mpa(10bar)4.Stem temperature:below 184 degree5.Design fuel:natural gas, lpg,lng,cng,biogas, diesel oil,heavy oilOur Boiler advantages1.High effiency2.Energy saving3.Safe(Double safety valve, double water level gauge, double pressure gauge design)4.More than 15 years life span(5-10% overload capacity design, reduce equipment fatigue)5.Environmental protection
We're here to help:
Easy ways to get the answers you need

Description

Product Description

1.Model:Lhs

2.Capacity:300kg/h,500kg/h,1000kg/h

3.Design pressure:0.4Mpa(4bar),0.7Mpa(7bar),1.0Mpa(10bar)

4.Stem temperature:below 184 degree

5.Design fuel:natural gas, lpg,lng,cng,biogas, diesel oil,heavy oil


Our Boiler advantages

1.High effiency

2.Energy saving

3.Safe(Double safety valve, double water level gauge, double pressure gauge design)

4.More than 15 years life span(5-10% overload capacity design, reduce equipment fatigue)

5.Environmental protection

1550807605486770

Specification

Model

LHS0.3-0.4-Y(Q)

LHS0.5-0.4(0.7)-Y(Q)

LHS1-0.4(0.7)-Y (Q)

Rated evaporation
     ( t/h)

0.3

0.5

1.0

Rated steam pressure( Mpa)

0.4

0.4/0.7

0.4/0.7


Feed water temp (°C )

20

20

20


Rated
     steam temp(°C )

151

151/170

151/170


     Applicable fuel

Light diesel ,Nature gas, Coal gas, Liquefied petrochemical gas

Oil consumption(g/h)
     10240kcal/kg

19.2

32

65

Nature gas(Nm3)
     8000kcal/m3

25.5

42.5

84

Coal gas(Nm3)
     3800kcal/m3

53

70.5

132

LPG(Nm3)
     24000kcal/m3

9.3

15.5

28

Burner Power consumption(Kw)

0.37

0.55

1.4

Weight of the boiler body(Kg)

991

1657

2561

water capacry(m3)

0.54

0.81

1.3

Overall dimension (mm)
     Diameter x Height

988x1956

1158x2190

1358x2468
