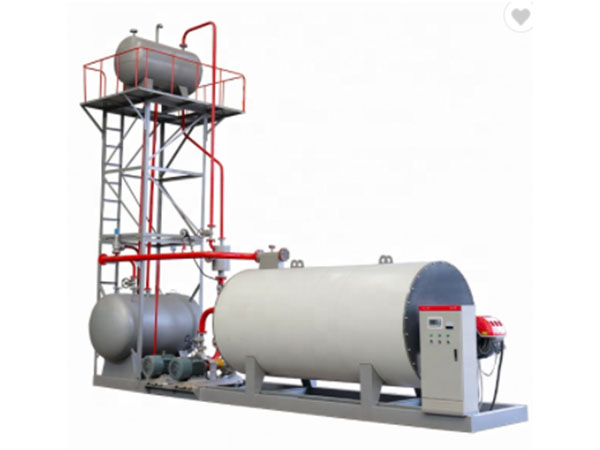

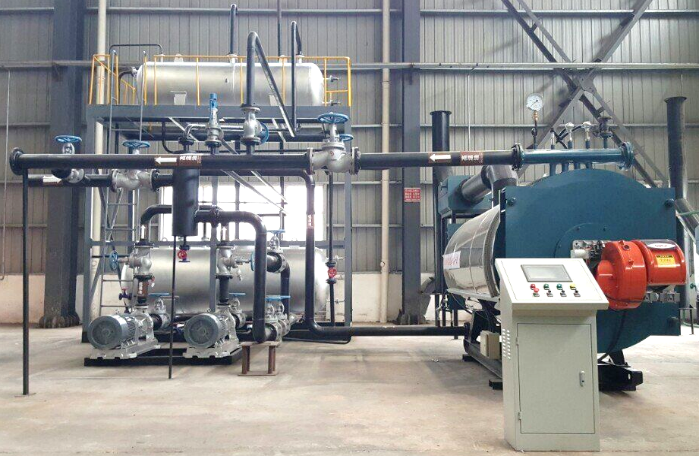

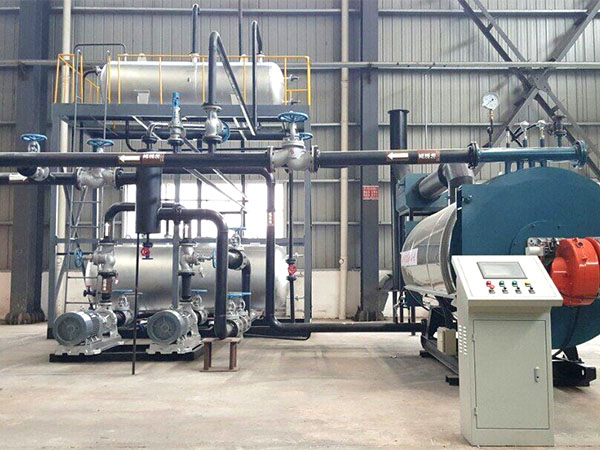

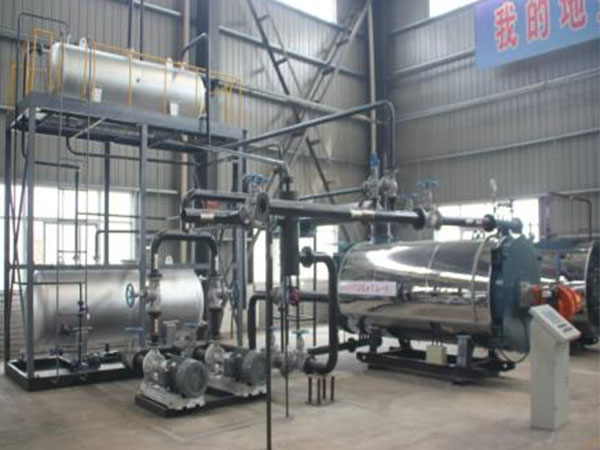

YY(Q)W series thermal oil boiler adopts horizontal chamber combustion three-coil structure,and its body is composed of outer coil,middle coil,inner coil and rear coil.

USES:oil chemical industry/chemical fiber industry/wood processing/paper making/building materials/food industry,etc.

Core Technology

1.OIl cover fire structure with three pass.

2.Wet back structure.

3.Compact coil tube.

4.Over oil temperature/over smoke temperature/low flow alarm.

5.Design with air preheater or heat recovery boiler.

6.Front and rear big open door design.

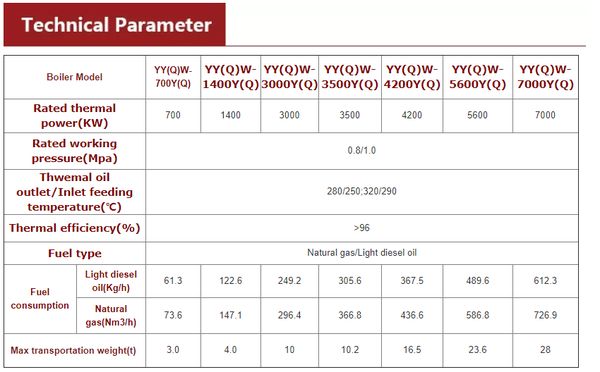

                                                          The fuel is Natural Gas/LPG/LNG/CNG,Diesel ,Heavy fuel Oil (HFO)

Thermal fluid boiler is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

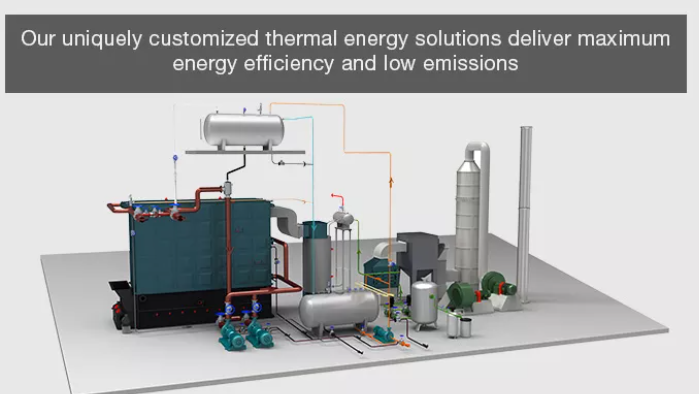

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fanm                                                                                                                                              The fuel is coal/biomass/wood/pellets etc
