YY(Q)W series thermal oil boiler adopts horizontal chamber combustion three-coil structure,and its body is composed of outer coil,middle coil,inner coil and rear coil.USES:oil chemical industry/chemical fiber industry/wood processing/paper making/building materials/food industry,etc.Core Technology1.OIl cover fire structure with three pass.2.Wet back structure.3.Compact coil tube.4.Over oil temperature/over smoke temperature/low flow alarm.5.Design with air preheater or heat recovery boiler.6.Front and rear big open door design.                                                          The fuel is Natural Gas/LPG/LNG/CNG,Diesel ,Heavy fuel Oil (HFO)Thermal fluid boiler is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fanm                                                                                                                                              The fuel is coal/biomass/wood/pellets etc

Thermal fluid boiler is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.                                                                        The fuel is coal/biomass/wood/pellets etc

YY(Q)W series thermal oil boiler adopts horizontal chamber combustion three-coil structure,and its body is composed of outer coil,middle coil,inner coil and rear coil.The fuel is Natural Gas/LPG/LNG/CNG,Diesel ,Heavy fuel Oil (HFO)USES:oil chemical industry/chemical fiber industry/wood processing/paper making/building materials/food industry,etc.Core Technology1.OIl cover fire structure with three pass.2.Wet back structure.3.Compact coil tube.4.Over oil temperature/over smoke temperature/low flow alarm.5.Design with air preheater or heat recovery boiler.6.Front and rear big open door design.

Operation: manual Rated evaporation: 0.5~8 t/hRated working pressure:0.7 1.0 1.25 1.6MPaNominal steam temperature:170 184 193 204 deg.CSteam boiler efficiency:>81%Avaliable fuel:  coal,wood,agriculture waste,biomass fuel fired etc.(It can be called energy saving boiler for its wide fuel, environmental friendly at the same time)DZH manual coal/Biomass fuel fired steam boiler model

Product Description1.Model:Lhs2.Capacity:300kg/h,500kg/h,1000kg/h3.Design pressure:0.4Mpa(4bar),0.7Mpa(7bar),1.0Mpa(10bar)4.Stem temperature:below 184 degree5.Design fuel:natural gas, lpg,lng,cng,biogas, diesel oil,heavy oilOur Boiler advantages1.High effiency2.Energy saving3.Safe(Double safety valve, double water level gauge, double pressure gauge design)4.More than 15 years life span(5-10% overload capacity design, reduce equipment fatigue)5.Environmental protection

We supply gas/diesel/heavy oil burner for Baltur , Riello ,Unigas, Oilon Brand, Any types of burner you are interested in , plz leave us a message.

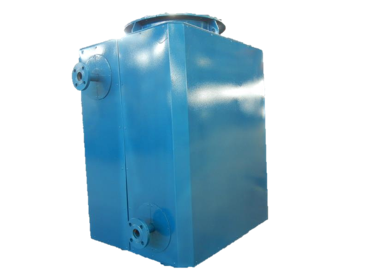

Function of economizer:Recycle exhausted smoke to heat feed water,which can reduce the smoke temperature, save the fuel and increase the boiler effiency. Boiler economizer type:Economizer for solid fuel(coal, biomass, wood,etc) boiler.The following is this type.2. Economizer for gas oil fired boiler. Our gas oil fired economizer is finned tube design and aluminum silicate insulation, which has high thermal effiency and good condensation effect. ND steel can remove 80% oxygen. The following is this type.How can you get the economizer price quickly?1.You should tell us the economizer will be used in what capacity boiler.2.You should tell us what fuel is the boiler burn.3.You should tell us what is the steam pressure of the boiler.After checking the above questions, we know exactly what economizer you need.
